Additional Luggage Rack Grid

Additional Luggage Rack Grid

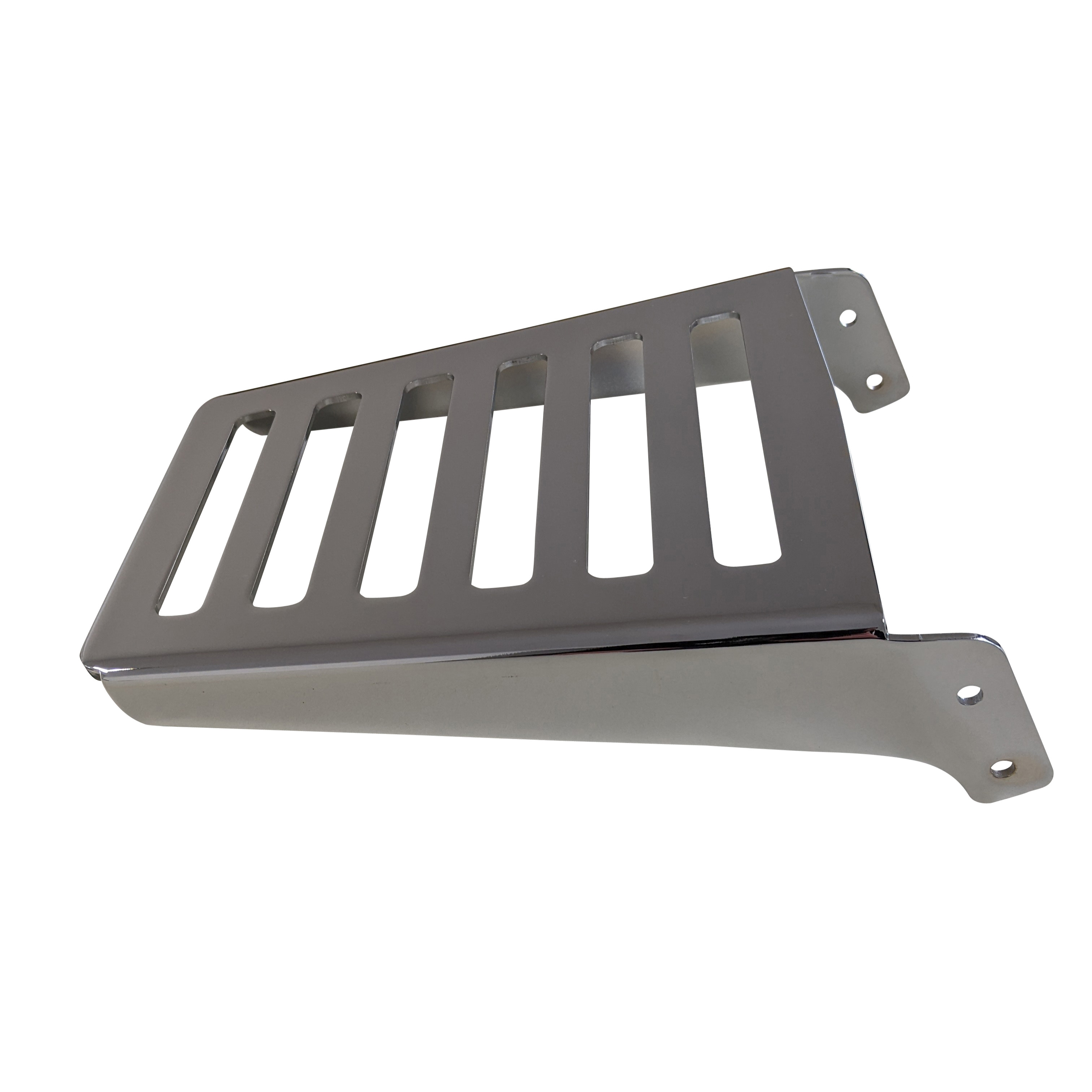

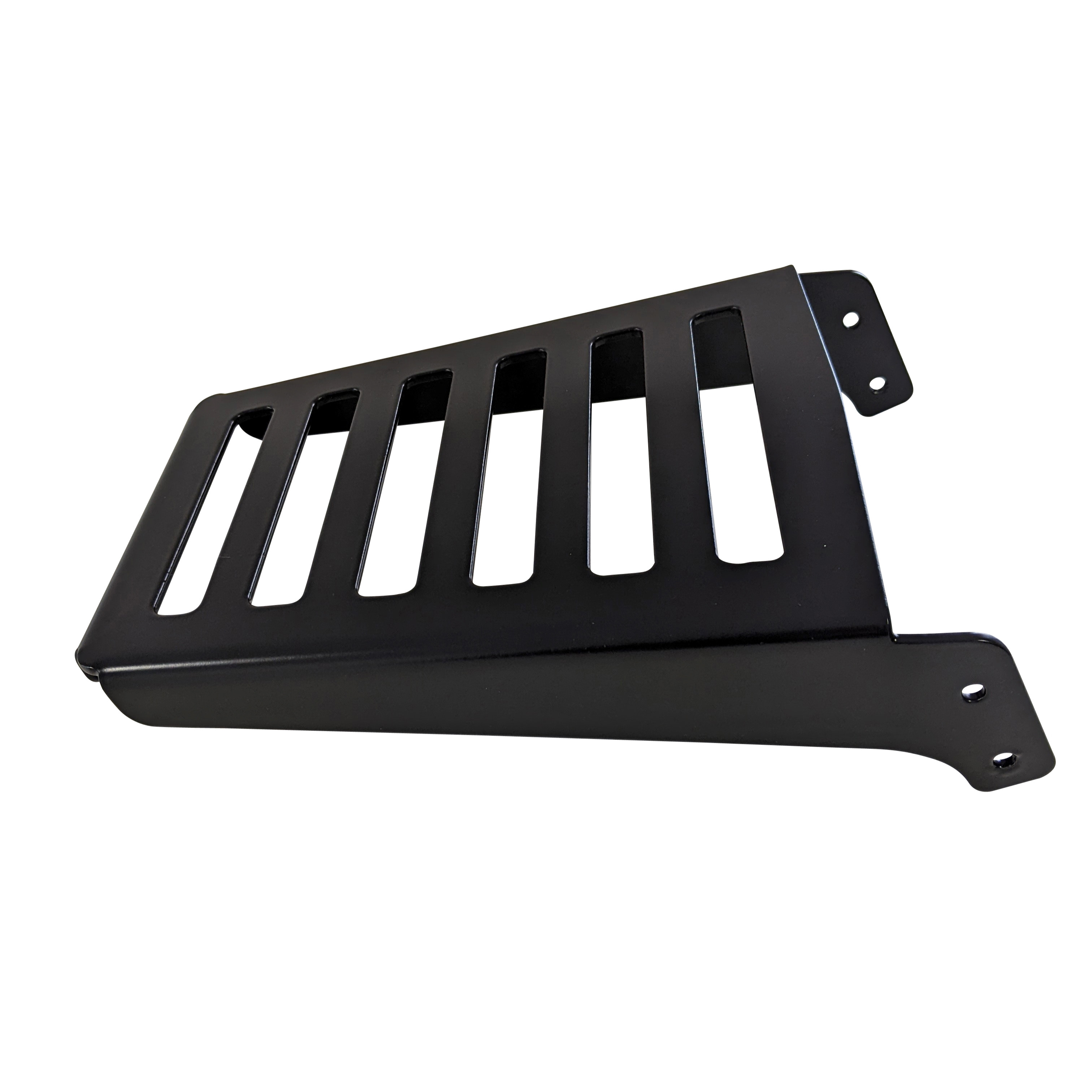

This additional luggage rack is interchangeable by loosening 4 screws on the fixing plates to form our two luggage rack formats (standard and special for top case) with a single pair of plates.

Ideal for transporting luggage:

The standard grid with a length of 23 cm allows you to attach any type of rear panniers that can attach to it. It is designed and guaranteed to support a load of 4.5 kg.

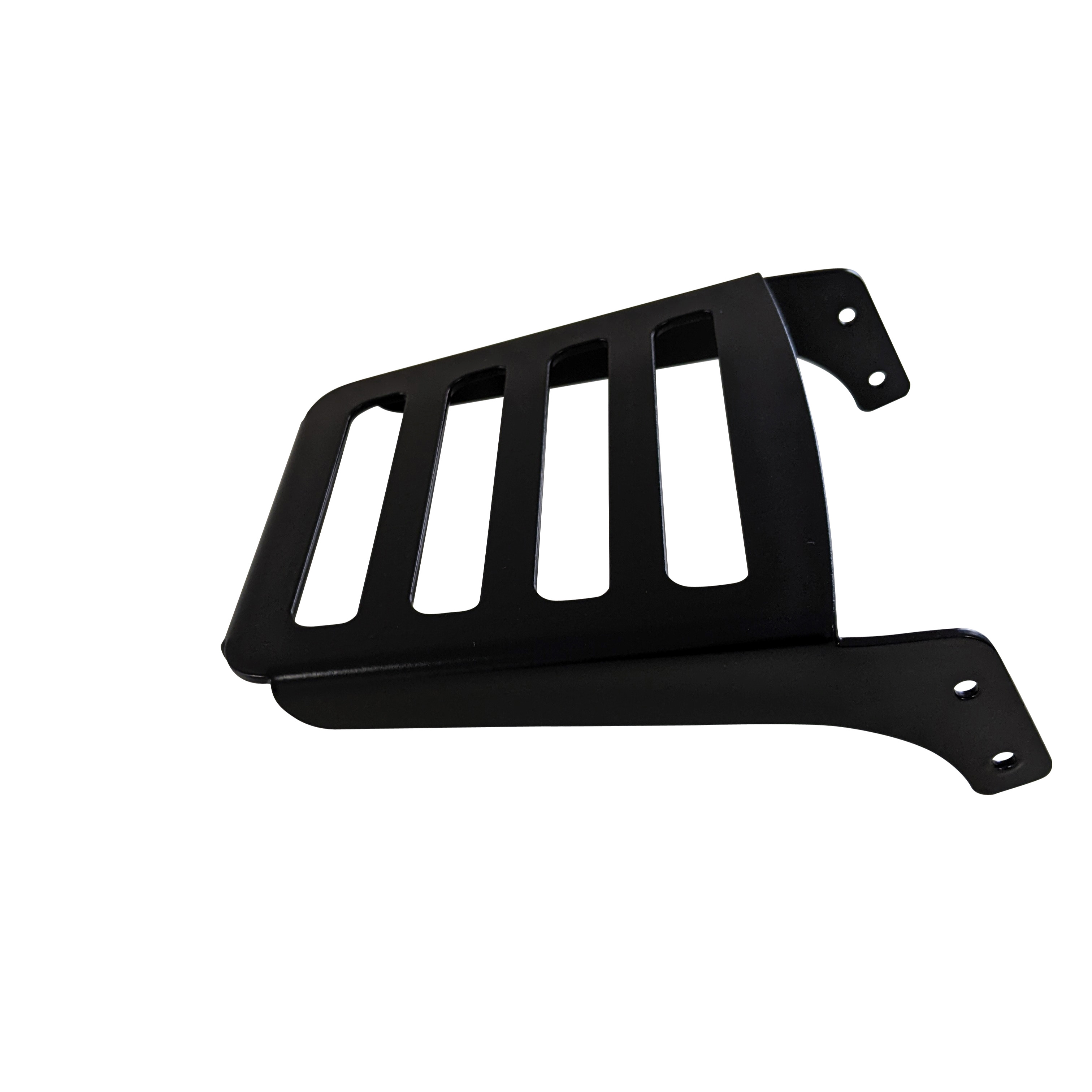

The special top case grid with a length of 27 cm allows you to fix all of our top cases, travel bags and rear panniers. It is designed and guaranteed to support a load of 6 kg.

Simple and flexible installation:

Installation is quick and easy on the existing mounting points of the luggage rack or sissy bar plates. The racks of the luggage rack are easily interchangeable without having to remove the fixings on the motorcycle. Just loosen four screws to quickly mount and dismount the components of our sissy bar and luggage rack kits.

Technical characteristics:

• Width at fixing base: 200 mm
• Width at the end of the grid: 175 mm for the Standard format or 155 mm for the Top Case format
• Length: 230 mm for the Standard format or 270 mm for the Top Case format
• Steel thickness: 3 mm
• Center distance between the 2 screws: 32.5 mm

Included:

• A solid steel luggage rack 23 or 27 cm (Standard or Top Case format) long and 20 cm wide

For assembly, it is essential to use the fixing plates of the luggage rack or sissy bar not included, specific for each motorcycle model.
